商品の詳細:
お支払配送条件:
|
| 標準: | ASTM B122 | 表面: | 明るい |
|---|---|---|---|
| 力またはない: | ない | タイプ: | CU NI Zn |
| 技術: | 冷間圧延する熱いforging& | 形: | Foil&Strip |
| DIN: | 2.0740 | JIS: | C7521 |
| UNS: | Bzn 18-18 | ||
| ハイライト: | 明るい洋白のストリップ,洋白のストリップC7701,Cupronickelのニッケル ホイル |
||

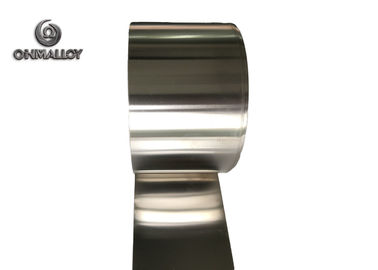

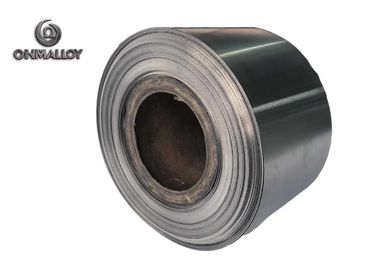

Cupronickel Strip Nickel Silver Strip CuNi18Zn27NS107 C7701/C77000 Nickel Foil
C7521(CuNi18Zn20) UNS.C75200
Nickel Silver Alloys, also called Copper - Nickel - Zinc alloys, 65 - 18 - 18 respectively.which has good formability, good corrosion and tarnish - resistance performance, and this alloy has the pleasing silver - like color.
Chemical composition
| Articles | Chemical composition | |||||
| GB | UNS | EN | JIS | Cu% | Ni% | Zn% |
| BZn18-18 | C75200 | CuNi18Zn20 | C7521 | 62-66 | 16.5-19.5 | Rem |
Physical properties,fabrication properties
| Physical properties | fabrication properties | |||||||||
| density g/cm3 | electrical conductivity %IACS | thermal conductivity W/(m.K) | modulus of elasticity GPa | specific heat J/(g.K) | cold-workability | machinability | electric plating property | hot dip tin plating property | weldability | corrosion |
| 8.73 | 6 | 32 | 125 | 0.34 | excellent | suitable | excellent | excellent | good | excellent |
Mechanical properties
| Mechanical properties | |||||||
| State | Hardness HV | Tension test | bending test | ||||
| Thickness mm | Tensile strength MPa | elongation % | thickness | angles | ID | ||
| 0 | - | 0.1-5.0 | ≥375 | ≥20 | ≤1.6 | 180° | sticking closely |
| 1/2H | 120-180 | 0.1-5.0 | 440-570 | ≥5 | ≤1.6 | 180° | 100% of thickness |
| ≤0.5 | 200% of thickness | ||||||
| H | 150-210 | 0.1-0.15 | 540-640 | - | ≤1.6 | 180° | 200% of thickness |
| >0.15-5.0 | ≥3 | ≤0.5 | 400% of thickness | ||||
| EH | ≥185 | 0.1-5.0 | ≥610 | - | - | - | - |
Features
1) Good color
2) High toughness
3) High strength
4) High stability
5) Excellent elasticity with fine silver gloss
6) Good fatigue
7) Rust and corrosion resistance properties
8) C7521 and C7541 have very good deep-drawing performance
Applications
1) Shielding material for communication electronics
2) Antenna material
3) EMI-shielding material
4) Spring contact
5) Flexible terminal
6) Environmentally-friendly plating-free electronic parts and components
7) Quartz oscillator
8) High-level material
9) Electric material
