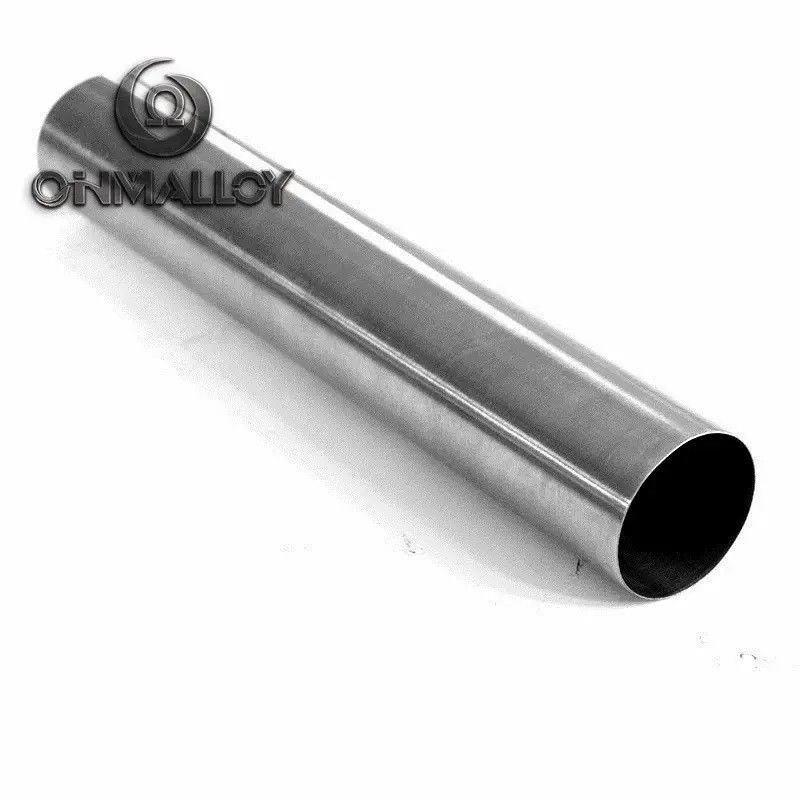

UNS N10276 Hastelloy C-276 - Seamless Tube Key Characteristics & Applications
|
|
詳細製品概要
| 老化: | 老化は利用できる | サイズ: | 0.1~10mm |
|---|---|---|---|
| 表面: | 明るい | 財産: | 優れた耐食性を備えています |
| 応用: | 触媒作用システム | 学年: | Hastelloy C276 |
UNS N10276 Hastelloy C-276 - Key Characteristics & Applications
Product Description
Hastelloy C-276 Chemical composition
| Alloy | % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | V | P | S |
| C | Min. | balance | 14.5 | 15 | 4 | 3 | |||||||
| Max. | 16.5 | 17 | 7 | 4.5 | 2.5 | 0.08 | 1 | 1 | 0.35 | 0.04 | 0.03 | ||
| C276 | Min. | balance | 14.5 | 15 | 4 | 3 | |||||||
| Max. | 16.5 | 17 | 7 | 4.5 | 2.5 | 0.01 | 1 | 0.08 | 0.35 | 0.04 | 0.03 |
Hastelloy C-276 Physical properties
| Density | 8.9 g/cm³ |
| Melting point | 1325-1370 °C |
Hastelloy C-276 Alloy m inimum mechanical properties in the room temperature
| Alloy state | Tensile strength Rm N/mm² |
Yield strength R P0. 2N/mm² |
Elongation A 5 % |
| C /C276 | 690 | 283 | 40 |
Characteristic as below
1. Excellent corrosion resistance to most of corrosion media in oxidation and reduction environments.
2. Excellent resist pitting, crevice corrosion and stress corrosion cracking performance.
Hastelloy C-276 Metallurgical structure
C276 is face-centered cubic lattice structure.
Hastelloy C-276 Corrosion resistance
C276 alloy suit for many kinds of chemical process industry which contain the oxidizing medium and reductant. High molybdenum and chromium content make it can resist the chloride corrosion, and tungsten make it corrosion resistance better.C276 is one of a few material that can resist the corrosion of most chlorine, hypochlorite and chlorine dioxide, this alloy have prominent corrosion resistance to high concentration chlorate( iron chloride and copper chloride).
Hastelloy C-276 Application field
C276 is widely used in the chemical field and petrifaction field, such as the element of chloride organic and catalyze system. This material especially suit for high temperature environment, impure inorganic acid and organic acid (such as formic acid and acetic acid), sea-water corrosion environment.
Production Process
Customer Photos
Testing Equirement
Shipment
