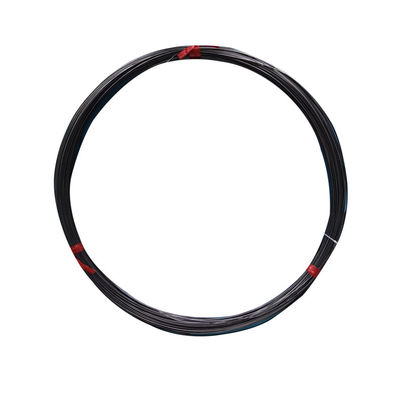

K Type MI Cable Ni90Cr10/NiSi Conductor MgO Insulation Industrial Temperature Measurement with N06600 Sheath
|
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| モデル番号: | MIの熱電対ケーブル | ブランド名: | Ohmalloy |
|---|---|---|---|
| 導体材質: | Ni90Cr10/NiSi | 断熱材: | MGO |
| ジャケット: | N06600 | 応用: | 工業用温度試験 |
| 色: | 銀 | MOQ: | 100メートル |
K Type MI Cable Ni90Cr10/NiSi Conductor MgO Insulation Industrial Temperature Measurement with N06600 Sheath
| Product Name | Mineral insulated metal sheathed thermocouple cable |
| Type | K, J, T, E, R, etc |
| Insulation material | 99.6% high purity MgO |
| Core number | 2 wires, 3wires, 4wires, 6wires |
| Sheath Materials | SS304, SS321,SS316L,SS310S, SS347, INCL600, ETC. |
| Diameter(mm) | From 0.25mm to 12.7mm |
| Application | Connecting with thermocouple and instrument machine |
Structure:
Custom made units as per exact requirements.
|
Ni Cr -Konstantan |
EK | E | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Fe - Konstantan | JK | J | SS304 | 1.0 | 300 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Cu - Konstantan | TK | T | SS304 | 1.0 | -200-100 |
| SS321 | 1.5-3.2 | 100-200 |
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
