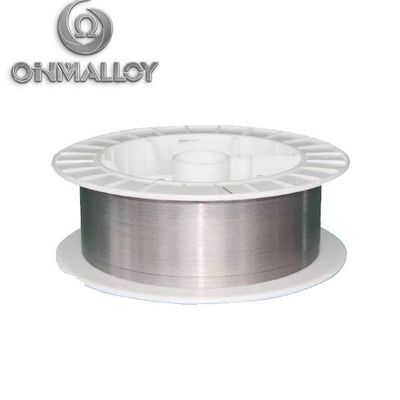

1.6mm 2.0mm 3.17mm FeCrAl Alloy Wire for Thermal Spray Coating
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| 形: | ワイヤー | 応用: | 熱スプレー |
|---|---|---|---|
| 化学組成: | ニアル | 材料: | ニクロム |
| 直径: | 3.17mm | 表面: | 明るくやわらかい |
| 状態: | 柔らかい | 製品名: | 抵抗ワイヤー |
1.6mm 2.0mm 3.17mm FeCrAl Alloy Wire for Thermal Spray Coating
PRODUCT OVERVIEW
Thermal spraying techniques are coating processes in which melted (or heated) materials are sprayed onto a surface.The "feedstock" (coating precursor) is heated by electrical (plasma or arc) or chemical means (combustion flame).Thermal spraying can provide thick coatings (approx. thickness range is 20 micrometers to several mm, depending on the process and feedstock), over a large area at high deposition rate as compared to other coating processes such aselectroplating, physical and chemical vapor deposition. Coating materials available for thermal spraying include metals,alloys, ceramics, plastics and composites. They are fed in powder or wire form, heated to a molten or semimolten state and accelerated towards substrates in the form of micrometer-size particles.
Combustion or electrical arc discharge is usually used as the source of energy for thermal spraying. Resulting coatings are made by the accumulation of numerous sprayed particles. The surface may not heat up significantly, allowing the coating of flammable substances.
Coating quality is usually assessed by measuring its porosity, oxide content, macro and micro-hardness, bond strength andsurface roughness. Generally, the coating quality increases with increasing particle velocities.
Bond coats applied using electric arc wire spray are very clean and more easily machined than their powder-sprayed counterparts. Wires are popular for machine element repair, most commonly on carbon steel, low-alloy steel, and stainless-steel substrates.
| Product | Chemical Composition | Available Sizes | Comparable Products | Hardness and Bond Strength | Typical Characteristics and Applications | |
| Name | ||||||
| NiAl95/5 | Nickel Aluminum | 1.6mm, 2.0mm | Tafa 75B Bond Arc® | 78 Rb | High temperature resistance | |
| Bond Arc® | Metco 8400 | 9746 PSI | Oxidation and abrasion resistant | |||
| Ni 5Al | Metco 450 | Dense coatings | ||||
| NiCr80/20 | Nickel Chrome | 1.6mm, 2.0mm | Tafa 06C | 90 Rb | Machinable | |
| Ni 80 Cr 20 | Praxair 80/20 | 7324 PSI | Heat Oxidation Resistance | |||
| Metco Nickel #33 | Oxygen barrier under ceramic coatings | |||||
| Monel 400 | Monel | 1.6mm, 2.0mm | Tafa 70T | 80-84 Rb | Marine corrosion protection | |
| Ni 27 Cu 2.0Fe 1.5Mg | Praxair Monel | 4307 PSI | Print rolls | |||
| Metco Monel | ||||||
| NiAl80/20 | Nickel Aluminum | 1.6mm, 2.0mm, 3.17mm |
Tafa 79B | 55-80 Rb | High temperature resistance | |
| Ni 20Al | Metco 405-1 | Oxidation and abrasion resistant | ||||
| Metco 405, 405NS | 8949 PSI | Dense coatings | ||||
Mechanical Properties:
| Coating Hardness | HRB 92 |
| Bonding Strength | 7324 PSI |
| Deposit Rate | 11 lbs/hr/100A |
| Condition | Solid Wire |
| Diameter | 1.6mm(14 ga),3.2mm |
| Package Size | 10kg,15kg,customized as client’s demand |
Specification of wire: 1.6mm, 3.2mm, 15kg/spool
Products&Package:
