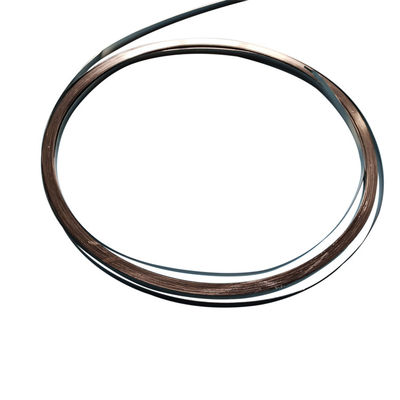

4J36 FeNi36 Alloy 0.4x211mm DIN17745 Wire Strip Bar 8.10g/cm Density for Precision Instruments
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| 材料: | FeNi | 化学薬品: | Fe64% Ni36% |
|---|---|---|---|
| 密度: | 8.1g/cm3 | 表面: | 明るい&smooth |
4J36 FeNi36 Alloy 0.4x211mm DIN17745 Wire Strip Bar 8.10g/cm Density for Precision Instruments
OhmAlloy-4J36 (Expansion alloy)
(Common Name: Invar, FeNi36, Invar Standard, Vacodil36)
OhmAlloy-4J36(Invar), also known generically as FeNi36 (64FeNi in the US), is a nickel–iron alloy notable for its uniquely low coefficient of thermal expansion (CTE or α).
The name Invar comes from the word invariable, referring to its relative lack of expansion or contraction with temperature changes.
It was invented in 1896 by Swiss physicist Charles Édouard Guillaume. He received the Nobel Prize in Physics in 1920 for this discovery, which enabled improvements in scientific instruments.
OhmAlloy-4J36 (Invar) is used where high dimensional stability is required, such as precision instruments, clocks, seismic creep gauges, television shadow-mask frames, valves in motors, and antimagnetic watches. In land surveying, when first-order (high-precision) elevation leveling is to be performed, the Level staff (leveling rod) used is made of Invar, instead of wood, fiberglass, or other metals. Invar struts were used in some pistons to limit their thermal expansion inside their cylinders.
Normal composition%
| Ni | 35~37.0 | Fe | Bal. | Co | - | Si | ≤0.3 |
| Mo | - | Cu | - | Cr | - | Mn | 0.2~0.6 |
| C | ≤0.05 | P | ≤0.02 | S | ≤0.02 |
Typical Physical properties
| Density (g/cm3) | 8.1 |
| Electrical resistivity at 20℃(Ωmm2/m) | 0.78 |
| Temperature factor of resistivity(20℃~200℃)X10-6/℃ | 3.7~3.9 |
| Thermal conductivity, λ/ W/(m*℃) | 11 |
| Curie pointTc/ ℃ | 230 |
| Elastic Modulus, E/ Gpa | 144 |
Coefficient of expansion
| θ/℃ | α1/10-6℃-1 | θ/℃ | α1/10-6℃-1 |
| 20~-60 | 1.8 | 20~250 | 3.6 |
| 20~-40 | 1.8 | 20~300 | 5.2 |
| 20~-20 | 1.6 | 20~350 | 6.5 |
| 20~-0 | 1.6 | 20~400 | 7.8 |
| 20~50 | 1.1 | 20~450 | 8.9 |
| 20~100 | 1.4 | 20~500 | 9.7 |
| 20~150 | 1.9 | 20~550 | 10.4 |
| 20~200 | 2.5 | 20~600 | 11.0 |
Typical Mechanical properties
| Tensile Strength | Elongation |
| Mpa | % |
| 641 | 14 |
| 689 | 9 |
| 731 | 8 |
Temperature factor of resistivity
| Temperature range ℃ | 20~50 | 20~100 | 20~200 | 20~300 | 20~400 |
| aR/ 103*℃ | 1.8 | 1.7 | 1.4 | 1.2 | 1.0 |
The heat treatment process
| Annealing for stress relief | Heated to 530~550℃ and hold 1~2 h. Cold down |
| annealing | In order to eliminate hardening, which be bring out in cold-rolled, cold drawing process. Annealing needs heated to 830~880℃in vacuum, hold 30 min. |
| The stabilization process |
|
| Precautions |
|
Style of supply
| Alloys Name | Type | Dimension | |
| OhmAlloy-4J36 | Wire | D=0.1~8mm | |
| OhmAlloy-4J36 | Strip | W= 5~250mm | T= 0.1mm |
| OhmAlloy-4J36 | Foil | W= 10~100mm | T= 0.01~0.1 |
| OhmAlloy-4J36 | Bar | Dia=8~100mm | L=50~1000 |
